DS 3: Lane positioning assist / Driving situations and related alerts

DS 3 2016-2024 Owners Manual

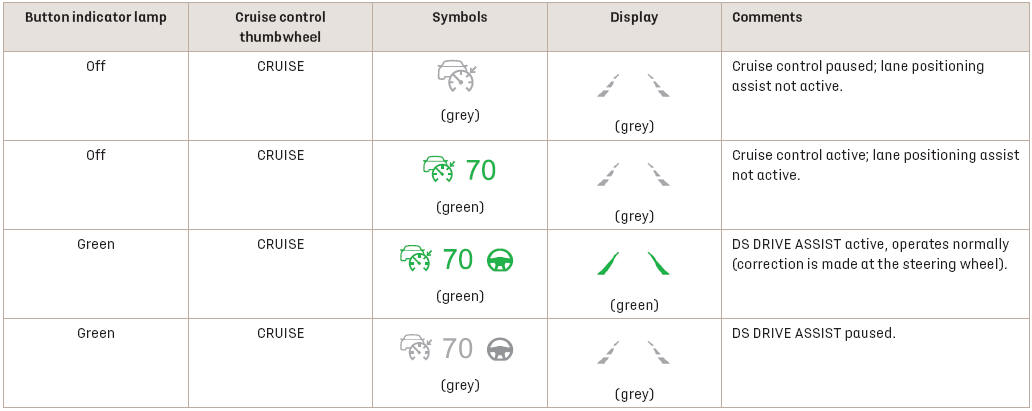

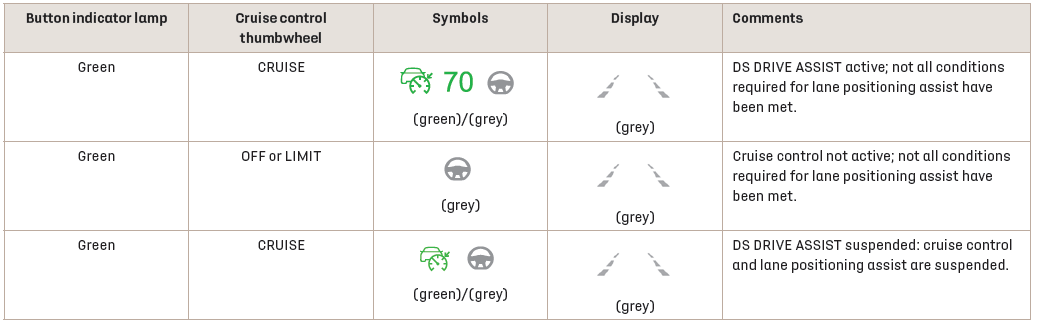

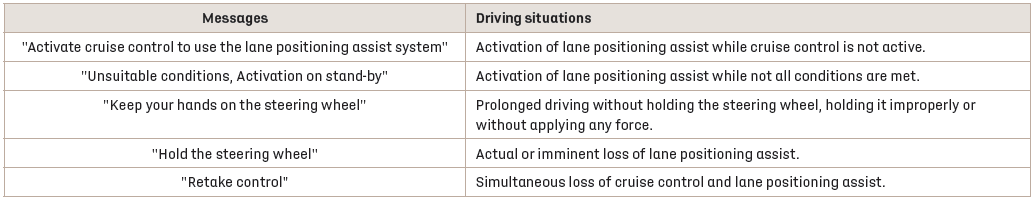

The tables below describe the displays associated with the main driving situations. The display of these alerts is not sequential.

DS 3. Driving situations and related alerts

DS 3. Driving situations and related alerts

DS 3. Driving situations and related alerts

    Cruise control. Pausing/Suspending the system

    Cruise control The driver must hold the steering wheel properly. When cruise control is activated, the symbol is displayed in green: by small steering actions, the system directs the vehicle and keeps it in the position chosen by the driver, in the traffic lane...

    Operating limits. Malfunction

    Operating limits The system may issue an alert when the vehicle is travelling on a long, straight road with smooth road surface even if the driver thinks they are holding the steering wheel correctly...

    Other information:

    DS 3 2016-2024 Owners Manual: Operating limits


    The system goes into standby automatically in the following cases: ESC deactivated or operation triggered. Speed below 43 mph (70 km/h) or greater than 112 mph (180 km/h), Electrical connection of a trailer. Use of a"space-saver" spare wheel detected (as detection is not immediate, deactivation of the system is recommended)...

    DS 3 2016-2024 Owners Manual: Reversing camera


    For more information, refer to the General recommendations on the use of driving and manoeuvring aids. As soon as reverse gear is engaged with the engine running, this system displays views of your vehicle’s close surroundings on the touch screen using a camera located at the rear of the vehicle...
