DS 3: Changing a fuse / Engine compartment fuses

DS 3 2016-2025 Owners Manual

The fusebox is placed in the engine compartment near the battery.

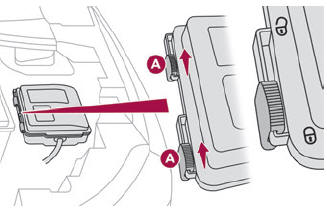

Accessing the fuses

DS 3. Engine compartment fuses

Release the two latches A.
Remove the cover.
Replace the fuse.
When you have finished, close the cover carefully, then engage the two latches A to ensure that the fusebox is properly sealed.

Fuse tables

DS 3. Engine compartment fuses
