DS 3: Exterior lighting control stalk / Main lighting

DS 3 2016-2025 Owners Manual

DS 3. Main lighting

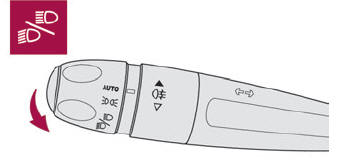

DS 3. Main lighting Automatic illumination of lamps/daytime running lamps

DS 3. Main lighting Sidelamps only

DS 3. Main lighting Dipped or main beam headlamps

DS 3. Main lighting "Highway function"

On versions fitted with "Full LED" technology headlamps, the range of the dipped beam headlamps is automatically increased once the speed of the vehicle is above 68 mph (110 km/h).

Headlamp dipping

DS 3. Main lighting

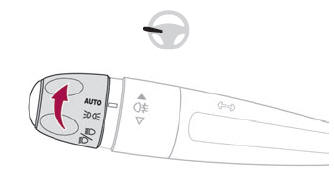

  • Pull the stalk to switch between dipped and main beam headlamps.

In "AUTO" and sidelamps mode, pull the stalk to switch the main beam headlamps on directly ("headlamp flash").

Displays

Illumination of the corresponding indicator lamp in the instrument panel confirms that the lighting selected is on.

DS 3. Main lighting A fault with a lamp is signalled by the permanent illumination of this warning lamp, accompanied by the display of a message and an audible signal.

    Exterior lighting control stalk

    ..

    Rear foglamp

    It only works if the dipped or main beam headlamps are on. Rotate the ring forwards/backwards to turn it on/off. When the lighting is switched off automatically ("AUTO" position) the foglamp and the sidelamps remain on...
