DS 3: Seat belts / Seat belt not fastened/unfastened alerts

DS 3 2016-2025 Owners Manual

DS 3. Seat belt not fastened/unfastened alerts

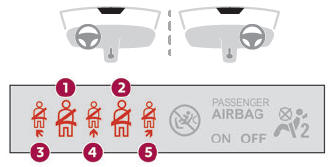

  1. Front left seat belt warning lamp
  2. Front right seat belt warning lamp
  3. Rear left seat belt warning lamp
  4. Rear centre seat belt warning lamp
  5. Rear right seat belt warning lamp

If the corresponding seat belt is not fastened or is unfastened, when the ignition is switched on, the seat belts warning lamp comes on in the instrument panel and the corresponding warning lamp (1 to 5) comes on in red in the seat belt and front passenger airbag warning lamps display.

DS 3. Seat belt not fastened/unfastened alerts If a rear seat belt is not fastened, the corresponding warning lamp (3 to 5) comes on for around 30 seconds.

Above about 12 mph (20 km/h) and for 2 minutes, each warning lamp corresponding to an occupied seat whose seat belt is unfastened flashes, accompanied by an audible signal. After these 2 minutes, the corresponding seat warning lamp remains on until the driver or the front/rear passenger fasten their seat belt.

Front seat belt warning lamp(s)

On switching on the ignition, the warning lamp comes on in the instrument panel and the corresponding warning lamp(s) comes on in red in the seat belt and front passenger airbag warning lamp display, if the seat belts of the driver and/ or the passenger(s) are not fastened or are unfastened.

Rear seat belt(s) warning lamp(s)

The corresponding warning lamp comes on in red in the seat belt and front passenger airbag warning lamps display screen if one or more rear passengers unfasten their seat belt.

    Seat belts

    Inertia reel The seat belts are equipped with an inertia reel which allows the strap length to automatically adjust to your shape. The seat belt returns to its storage automatically when it is not used...

    Advice

    The driver must ensure that passengers use the seat belts correctly and that they are all fastened before setting off. Wherever seated in the vehicle, you must always fasten the seat belt, even for short journeys...
