DS 3: Changing a fuse / Changing a fuse

DS 3 2016-2025 Owners Manual

Before changing a fuse:

  • Identify the cause of the fault and fix it.
  • Switch off all power consumption.
  • Immobilise the vehicle and switch off the ignition.
  • Identify the defective fuse using the current allocation tables and diagrams.
  • To replace a fuse, it is essential to:

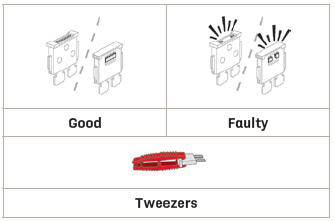

  • Use the special tweezers to extract the fuse from its housing and check the condition of its filament.
  • Always replace the failed fuse with a fuse of the same rating (same colour); use of a different rating may cause malfunctions - risk of fire!

If the fault recurs soon after replacing a fuse, have the electrical system checked by a dealer or by a qualified workshop.

DS 3. Changing a fuse Complete fuse allocation tables and corresponding diagrams

For more information, contact a dealer or a qualified workshop.

DS 3. Changing a fuse The replacement of a fuse not shown in the allocation tables could cause a serious malfunction of the vehicle.

Consult a dealer or a qualified workshop.

DS 3. Changing a fuse

DS 3. Changing a fuse Installing electrical accessories

The vehicle's electrical system is designed to operate with standard or optional equipment.

Before fitting other electrical equipment or accessories to your vehicle, contact a dealer or a qualified workshop.

DS 3. Changing a fuse The Manufacturer accepts no responsibility for the cost incurred in repairing the vehicle or for rectifying malfunctions resulting from the installation of accessories not supplied or not approved by it and not installed in accordance with its specifications, in particular when the combined power consumption of all of the additional equipment connected exceeds 10 milliamperes.

    Accessing the tools

    The extraction tweezers are located behind the fusebox cover. Depending on version: Unclip the cover by pulling at the top left, then right. Remove the cover completely...

    Fuses in the dashboard

    The fusebox is located in the lower dashboard (left-hand side). To access the fuses, follow the same procedure as described for accessing the fuse replacement tools...
